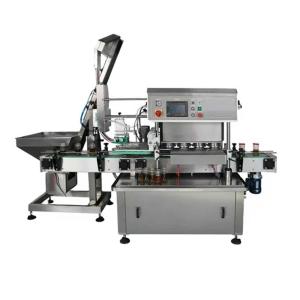

Glass Bottle High Speed Jar Vacuum Capping Sealing Machine Twist Off Capping Machine
Npack Machinery stands as a leading manufacturer of the Automatic Twist-off Cap Vacuum Lug Capping machine, catering to diverse industries such as Food, Beverages, and Pickle Manufacturing Units. This machine excels in vacuum capping for bottles equipped with lug or twist-off caps, accommodating those that may or may not require vacuum sealing. Its functionalities encompass automatic caps arrangement, automatic caps loading, automatic vacuumizing, and automatic capping, consolidating multiple processes into a single machine. The equipment finds application across a wide range of industries, including pickle units, food, beverages, and the chemical sector. With its unique design and versatile application capabilities, the machine is designed for capping glass bottles and caps of various sizes, achieved through simple adjustments rather than part replacements.
A standout feature of this machine is its "No Bottle – No Cap system," complemented by attributes such as a compact design, smooth operation, low noise, efficient energy consumption, simple operation, easy adjustment, maintenance and cleaning convenience, and a high degree of automation. The Automatic Twist-off Cap Vacuum Lug Capping machine operates by reducing air pressure inside the bottle through high-speed steam injection, securely tightening the bottle cap, and then creating a vacuum by flushing cold water over the bottle. The machine is equipped with a unique vibrator feeder for Lug cups, and an optional waterfall-type Cap feeder elevator is also available.
Feature
1. Designed for vacuuming and capping glass bottles through steam exhausting methodology.
2. Suitable for various types of three or four screw caps.
3. Features frequency-conversion-driven technology, allowing adjustable speed settings.
4. Allows for seamless bottle type changes without the need for component replacements.
5. Operated through PLC and a touch screen Human-Machine Interface (HMI) control.
6. Constructed with main parts made of durable stainless steel 304.
7. The vacuum capping machine is apt for sealing glass bottles of diverse shapes and specifications. The bottle and cap are automatically conveyed to the vacuum chamber position, where the vacuum is initiated, and the cap is securely tightened.
Parameter
|
1
|
Power
|
≤2.3KW(including the vacuum pump)
|
|
2
|
Production capacity
|
2200-2400 BPH
|
|
3
|
Cap diameter
|
￠30-￠55mm ￠50-￠85mm
|
|
4
|
Bottle height
|
80-250mm
|
|
5
|
Bottle diameter
|
￠30-￠85mm
|
|
5
|
Max vacuum
|
-0.08mpa
|
|
6
|
Capping torsion
|
5-20N.M
|
|
7
|
Air consumption
|
0.6M3/0.7Mpa
|
|
9
|
Dimensions
|
about2100×900×1630mm 750X1060X1400mm
|
|
10
|
Weight
|
about 850kg
|
Company Profile
With a heritage steeped in innovation and precision engineering, we proudly position ourselves as a premier manufacturer of capping machine. Npack, as a specialized manufacturer, has refined its expertise in the creation of capping machine that establish industry benchmarks. Our machinery is meticulously crafted to cater to the varied requirements of the processing and packaging sector.
Committed to staying at the forefront of bottle capping technology, we consistently invest in research and development to deliver the latest advancements. The Npack team is unwavering in its dedication to providing exceptional service and support throughout your association with us. Our reach extends globally, as we assist processors and manufacturers in elevating their production capabilities.
After-sale Service
1.Install:
Our team of skilled technicians is ready to dispatch and install the capping machine. The service fee covers installation, travel, meal expenses, and so on.
2.Train:
For optimal performance of the capping machine, we offer on-site or factory training for dealers, machine operators, engineers, and technicians.
3.Guarantee:
When repairing the capping machine, expect efficient service, a one-year quality assurance period, parts supply, and swift feedback for troubleshooting.
4.Consulting Service:
Take advantage of our complimentary consultation service. Our professional sales team will guide you to the most suitable solution, complete with CAD drawing designs for the capping machine.
5.Technical Support:
Benefit from our all-weather, long-term technical support. Simply drop us an email or give us a call, and we'll provide quick feedback, ensuring you can be carefree.
6.Spare Part:
During transportation, we include a set of vulnerable spare parts for the capping machine at no additional cost. You can also order a comprehensive range of high-quality parts at any time.
Packing and Shipping:
Packaging and Shipment for the bottle capping machine
Packaging:
The bottle capper machine will be securely encased in a robust wooden crate, guaranteeing its safe transport.
To prevent any shipping-related damage, the machine will be enveloped in protective materials.
All components and accessories will be meticulously packed, and clear labels will facilitate easy identification.
Included in the packaging are a comprehensive user manual and a warranty card.
Shipping:
We provide a range of shipping alternatives, encompassing air, sea, and land transportation, tailored to meet our customers' specific requirements.
Our adept logistics team will thoughtfully plan the shipping route and manage all essential customs procedures.
In collaboration with trustworthy shipping companies, we ensure the punctual and secure delivery of our products.
Customers will receive a tracking number to monitor the real-time status of their shipment.
